Bathroom Waterproofing in Australia: What Homeowners Need to Know
Waterproofing is one of the most important parts of a bathroom renovation — and one of the parts you'll barely see once the bathroom is finished.
Beautiful tiles, expensive tapware and a gorgeous vanity might get all the attention, but underneath those finishes is a waterproofing system designed to help protect the building from moisture.
And when waterproofing isn't done correctly, the consequences can be far more serious than a crooked tile or badly positioned towel rail.
Water can find its way into walls, floors and adjoining areas, potentially leading to damaged building materials, mould, deterioration and expensive repairs.
That's why bathroom waterproofing in Australia isn't simply an optional extra or something that should be treated as an afterthought.
What Is Bathroom Waterproofing?
Bathroom waterproofing involves creating a water-resistant barrier in required wet areas before the finished surfaces — such as tiles — are installed.
Depending on the bathroom design and construction, waterproofing may be required across particular floors, walls, shower areas, junctions and penetrations in accordance with applicable building requirements.
The important thing for homeowners to understand is this:
Tiles and grout are not the waterproofing system.
Your beautiful tiled shower is the finished surface you see. The waterproofing that helps protect the structure sits underneath it.
Once the tiles are installed, much of that work disappears from view — which is exactly why it's worth understanding what should happen before it gets covered up.
Homeowner tip: Don't judge the importance of a renovation stage by how exciting it looks. Some of the most important work in your bathroom will eventually be completely hidden.
What Are the Bathroom Waterproofing Requirements in Australia?
Bathroom waterproofing in Australia isn't simply a matter of applying membrane wherever someone thinks water might go.
Wet areas in residential buildings are covered by the National Construction Code (NCC), with requirements relating to which areas need to be waterproof or water resistant and how wet-area systems are constructed.
The Australian Standard AS 3740 — Waterproofing of domestic wet areas is also an important part of the regulatory framework and can form part of the compliance pathway used for residential wet areas.
For homeowners, you don't need to memorise the technical requirements.
What you should understand is that different parts of a bathroom can have different waterproofing requirements, and the exact requirements depend on factors such as the shower design, floor construction, bath configuration, floor wastes and the way the wet area is constructed.
What About the Shower Area?
The shower is naturally one of the most important areas.
Under the NCC 2022 Housing Provisions, shower-area walls are required to be waterproofed to at least 1800mm above the finished floor level.
But this doesn't mean homeowners should use that one measurement as a DIY waterproofing specification.
There are also requirements dealing with floors, wall and floor junctions, penetrations, baths, vessels, hobs, doorways, floor wastes and other parts of wet-area construction.
The waterproofing system needs to be considered as a whole.
Waterproof vs Water Resistant — They're Not Necessarily the Same Thing
Another useful distinction is that the NCC refers to areas being waterproof and others being water resistant.
Those terms shouldn't simply be treated as interchangeable.
Which requirement applies depends on the location and construction of the wet area.
That's one of the reasons copying a waterproofing layout from a photo, renovation forum or another person's bathroom isn't a reliable way of determining what your own bathroom requires.
Homeowner tip: Rather than asking “How high should my waterproofing go?”, ask your renovator or waterproofing professional which requirements apply to your particular bathroom design and how the proposed system will comply.
Who Can Waterproof a Bathroom in Australia?
This is one of those questions where there isn't a single answer that applies neatly across the whole of Australia.
Licensing and registration requirements for waterproofing can differ between states and territories. The type and value of the work, who is contracting for the renovation and the person's licence or registration conditions can also matter.
For homeowners, the safest approach is simple:
Don't assume someone is qualified or appropriately licensed to carry out waterproofing just because they work in bathrooms.
Ask your renovator who will actually complete the waterproofing and whether that person holds the qualifications, licence or registration required in your state or territory.
Check the Person Doing the Work
If you're using a bathroom renovation company, you may deal primarily with the renovator rather than each individual trade.
That's completely normal.
But you can still ask:
Who is carrying out the waterproofing?
What qualifications or licensing do they hold?
What waterproofing system is being used?
What records or documentation will I receive?
Where your state or territory provides a public licensing register, you can also check the relevant contractor or tradesperson rather than simply taking someone's word for it.
What About South Australia?
In South Australia, building and trade licensing is administered through Consumer and Business Services (CBS). CBS provides a public register where homeowners can check whether a person or business holds an appropriate licence.
The important thing isn't simply seeing the word “licensed” on a website or business card. The licence needs to be appropriate for the work being undertaken.
Homeowner tip: Before your renovation starts, ask who will complete the waterproofing and check the requirements that apply in your own state or territory. Keep relevant documentation with the rest of your renovation records.

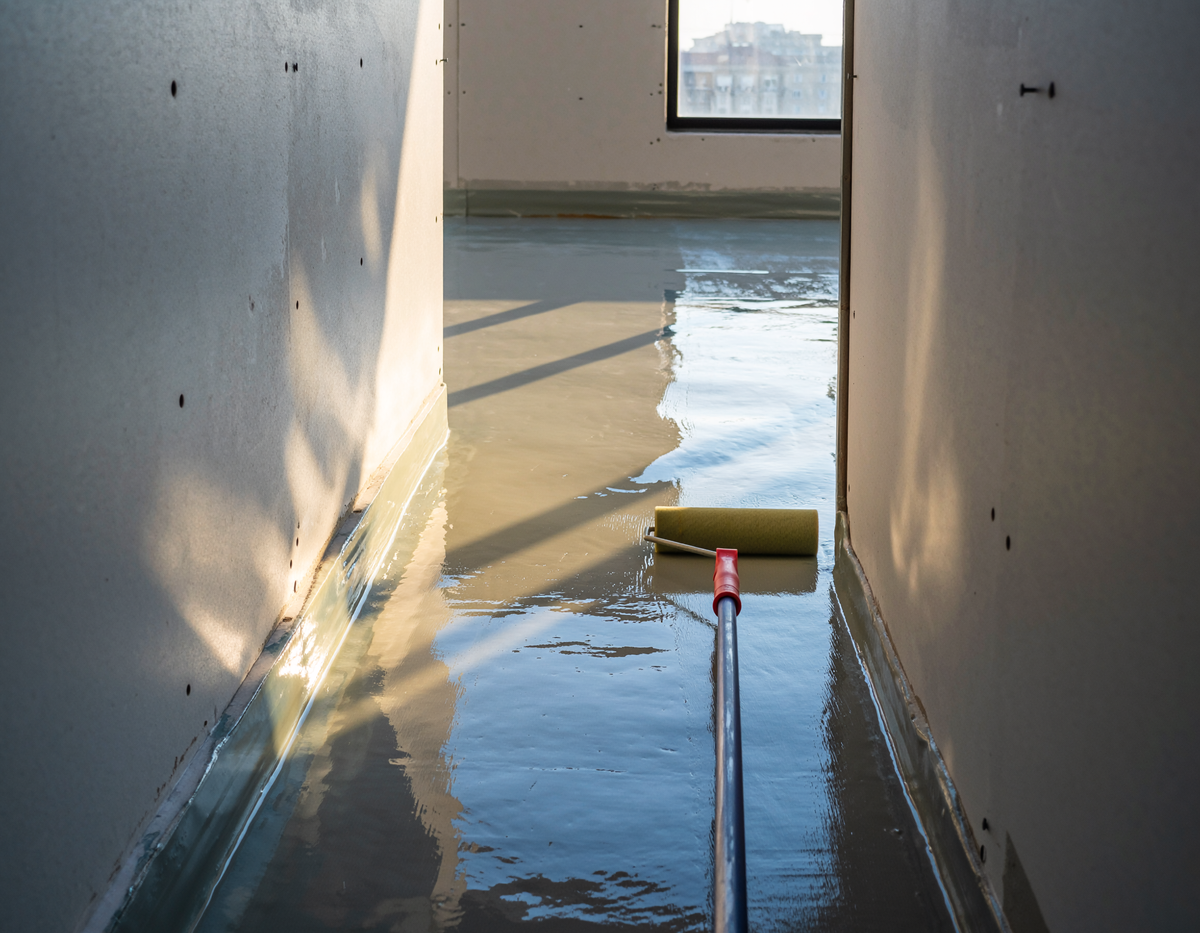

What Happens During the Waterproofing Stage?
By the time waterproofing begins, much of the work that will eventually sit behind your finished bathroom should already be in place.
The room may have new wall linings, prepared floors, shower areas, niches and plumbing penetrations ready for the waterproofing system.
This stage is about creating a continuous system in the areas that require protection — not simply painting some membrane onto the middle of the shower floor.
Particular attention needs to be given to areas where water can potentially find a pathway, including junctions, corners, penetrations and changes in surface.
Junctions, Corners and Penetrations Matter
Think about how many interruptions there can be in a bathroom surface.
There may be plumbing coming through walls, shower fittings, tapware, floor wastes, niches and numerous points where one surface meets another.
These details matter because the waterproofing system needs to maintain its integrity around the relevant junctions and penetrations.
For example, the NCC includes specific waterproofing requirements for penetrations within shower areas and for wall/floor and wall junctions.
It's another reason waterproofing should be viewed as a complete system, rather than simply a product applied to a wall or floor.
What About Shower Niches?
A shower niche looks fantastic when it's finished, but from a waterproofing perspective it creates additional corners, junctions and surfaces within one of the wettest parts of the bathroom.
The NCC specifically addresses recessed soap holders, niches and similar penetrations within shower areas as part of the waterproofing requirements.
This doesn't mean you should avoid niches.
It means they need to be properly planned and incorporated into the bathroom construction rather than treated as a decorative hole added at the last minute.
Waterproofing Needs Time Before Tiling
Once a waterproofing system has been applied, the next stage isn't necessarily immediate tiling.
Waterproofing products and systems have manufacturer requirements for application and drying or curing before subsequent work can proceed.
Those requirements can vary between products, site conditions and systems, which is why there isn't one universal number of hours that applies to every bathroom.
For homeowners, the important lesson is simple:
Don't assume a day where nobody is laying tiles means nothing is happening.
Allowing required drying or curing time can be part of the renovation process.
Trying to rush hidden stages simply to make the renovation look as though it's moving faster isn't where you want corners cut.
Homeowner tip: Ask your renovator what waterproofing system is being used and when the bathroom will be ready for the next stage. You don't need to supervise the technical process — but it's perfectly reasonable to understand the sequence.
Common Bathroom Waterproofing Mistakes & Warning Signs
Most homeowners will never see their bathroom waterproofing again once the tiles are installed.
That's exactly why problems with waterproofing can be so frustrating. By the time there is an obvious sign that something isn't right, the waterproofing system may be buried underneath tiles, adhesive and finished surfaces.
You don't need to know how to install waterproofing yourself, but understanding some of the things that can contribute to problems can help you ask better questions during your renovation.
Rushing the Waterproofing Stage
Bathroom renovations involve multiple trades and a carefully coordinated schedule, so everyone naturally wants to keep the project moving.
But waterproofing isn't a stage that should be rushed simply because the tiler is booked for the next morning.
Waterproofing products and systems need to be installed according to their requirements, including relevant preparation, application and drying or curing times.
A renovation finishing one day earlier isn't much consolation if cutting corners causes problems later.
Poor Planning Around Penetrations and Niches
Every time plumbing, tapware or another fitting passes through a waterproofed area, it creates a detail that needs to be properly incorporated into the system.
The same applies to niches, corners and junctions.
This is another reason deciding to add a shower niche halfway through construction isn't necessarily as simple as cutting a hole in the wall.
These features should form part of the bathroom planning and construction from the beginning.
Assuming Tiles and Grout Will Stop Water
This is one of the biggest misconceptions homeowners can have.
A beautifully tiled bathroom can still have problems underneath.
Tiles, grout and silicone are visible parts of the finished bathroom, but they should not be confused with the waterproofing system behind them.
Waterproofing and tiling work together, but they're separate parts of the renovation. Our guide to bathroom tiling costs in Australia explains what can affect the cost of the finished tiled surface.
A bathroom can look perfect and still have problems hidden underneath the surface.
Warning Signs After a Renovation
Not every mark, crack or bit of discolouration automatically means there is a waterproofing failure.
However, things that may warrant investigation include persistent moisture or staining around adjoining walls or floors, swelling or deterioration of nearby building materials, recurring mould or dampness, loose finishes, or unexplained moisture appearing outside the wet area.
If something concerns you, don't immediately start removing tiles or trying to diagnose the problem yourself.
Raise it with your renovator or an appropriately qualified professional so the cause can be properly investigated.
Keep Photos and Documentation
If possible, having photographs of the bathroom during construction can be useful because they provide a record of what existed before everything was covered.
Keep those photos with your contracts, invoices, warranties, product information and any relevant certificates or documentation from the renovation.
You may never need them.
Hopefully you won't.
But renovation paperwork becomes considerably more valuable when you actually know where it is.
Homeowner tip: Create a folder on your phone or computer for your renovation and save progress photos as the work happens. Once the bathroom is finished, add your warranties, invoices and relevant documentation to the same folder.
Questions to Ask Your Renovator About Bathroom Waterproofing
You don't need to understand every technical detail of a waterproofing system to have a useful conversation with your renovator.
Instead, focus on understanding who is responsible, what system is being used and what documentation you'll receive.
Before or during your bathroom renovation, consider asking:
Who Will Be Carrying Out the Waterproofing?
Ask whether the waterproofing will be completed by your renovator, tiler, waterproofing contractor or another appropriately qualified person.
Where licensing or registration requirements apply in your state or territory, you can also ask what licence or qualification covers the work.
What Waterproofing System Will Be Used?
You don't need to choose the membrane yourself, but it's reasonable to know which system or products are being used in your bathroom.
Keep this information with your renovation records.
How Long Does It Need Before the Next Stage?
Rather than assuming tiling should start immediately, ask what drying or curing requirements apply to the waterproofing system being used.
This can also help you better understand your renovation timeline.
Want to understand how this stage fits into the overall schedule? Read our guide to how long a bathroom renovation takes in Australia.
How Are Niches and Penetrations Being Considered?
If your bathroom has shower niches, wall-mounted tapware, plumbing penetrations or other features within wet areas, ask how these have been incorporated into the construction and waterproofing plan.
Again, you're not trying to supervise the technical work.
You're simply making sure these details haven't been treated as an afterthought.
What Documentation Will I Receive?
Ask your renovator what waterproofing records, certificates, warranties or other documentation will be provided where applicable to your project and location.
Then actually keep them.
A certificate sitting somewhere in an old email account isn't much use if nobody can find it five years later.
The goal isn't to become the waterproofing expert. It's to become an informed homeowner who knows what questions to ask.
Waterproofing Is Hidden — But It Shouldn't Be Ignored
When homeowners plan a bathroom renovation, it's natural to spend most of their time thinking about the things they'll eventually see.
The vanity. The tiles. The bath. The tapware. The mirror.
Waterproofing isn't nearly as exciting.
But long after you've forgotten how many hours you spent choosing between two almost-identical shades of beige tile, the work underneath those tiles will still matter.
Understanding the waterproofing stage means you can ask informed questions, allow appropriate time in the renovation process and keep the documentation that may matter later.
And importantly, it helps you understand that a successful bathroom renovation isn't just about how the bathroom looks on handover day — it's about how the bathroom has been built underneath.
